紫外激光打标机

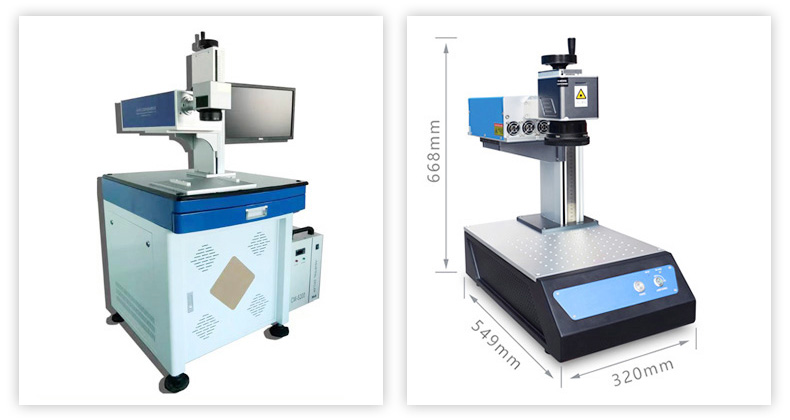

YK-D-UVL紫外激光打标机

YK-D-UVL Laser Marking Machine

1产品特点

■属于冷激光，特别适合于微加工

■整机风冷却方式

■新型半导体激光源，电光转换效率高，使用寿命长

■三阶腔内倍频技术，光斑小，基本没有加工热影响

■整机能耗低，免维护

Product features

●Cold laser, particularly suitable for micromachining

●Air cooling

●New semiconductor laser source , high electricity-laser exchange ratio, long using lifetime

●Third-order intracavity frequency doubling technology , tiny spot, basically no heat affected processing

●Low power consuming, maintenance free, stable performance

2技术参数

输出功率     Laser power     2W/3W/5W/7W

激光波长     Wavelength     355nm

光束质量     Beam quality    ㎡＜1.3

标刻范围     Marking scope   65×65/110×110/160×160mm(可选optional)

标刻速度     Marking speed   ≤7000mm/s

线宽         Min. line width     0.01mm

字符         Min. Character    0. 1mm

脉宽         Pulse width         20ns(20KHz)

脉冲能量     Pulse energy      150uj(20KHz)

脉冲重要频率     Repeat precision    10-200KHz

供电电源     Power supply      220V±10% 50Hz/12A

整体功耗     Power consumption       400W

工作温度     Working temperature  5℃--35℃

3适用材料

电器材料、包装材料、玻璃材料的冷加工

Cold machining of electric materials, packaging materials and glass materials

4适用领域

医药、食品、低压电器、LED晶元、触摸屏ITO膜、塑料等行业

Medicine, food, low voltage electric appliance, LEO wafer，touch screen ITO film, plastic and so on

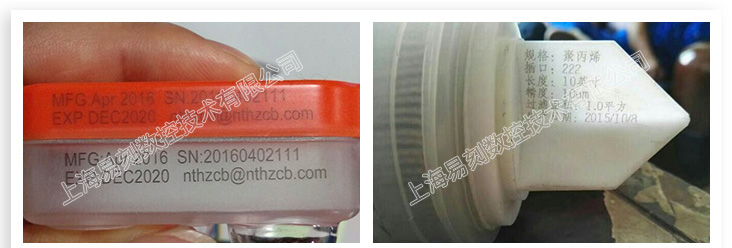

5打印效果
